MAXIMUM
SIMPLICITY AND
PRECISION.

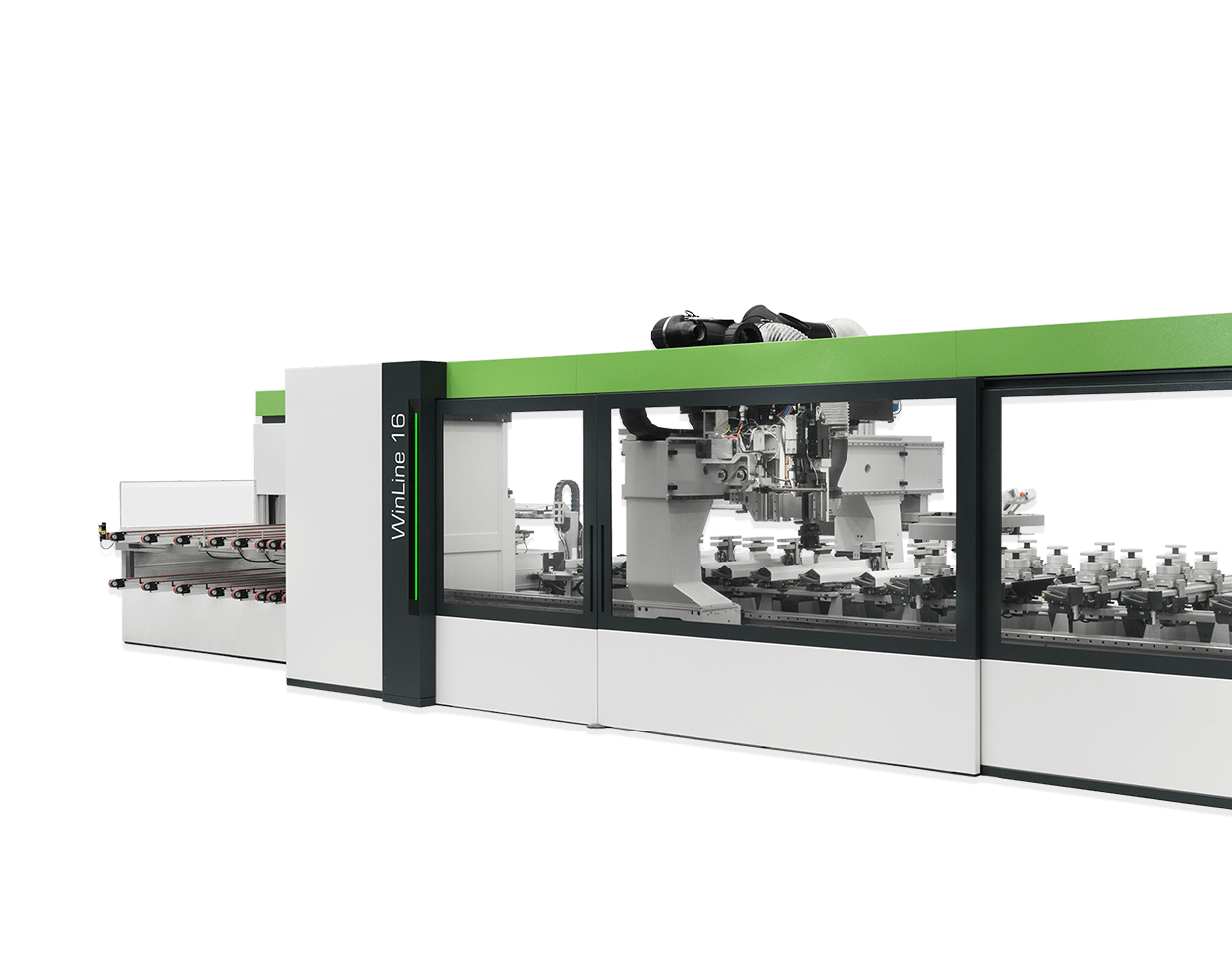

WinLine 16 is Biesse's new NC multi-centre for the production of doors and windows,
designed for artisans and small industries aiming to increase production and for medium
and large industries who need to produce small batches of unusual size or remakes.
The system produces both standard and special doors and windows with the utmost simplicity while the operator handles other tasks;
the machine only takes up a small area and handles the loading, unloading and positioning of pieces autonomously and with extreme precision.

WINLINE 16: Photo 2
+
WINLINE 16: Photo 3

The work table was specifically designed for door and window applications. A section of the work table is dedicated to linear processing and a second to the manufacturing of custom windows and doors (arches, hollow-core doors, squaring).

+
WINLINE 16: Photo 4

Finger Clamps always enable optimal clamping of the component. Even the shortest work piece is always secured using 2 clamps.

PRECISE AND RELIABLE

The new multi-centre has a double drive gantry structure, guaranteeing greater sturdiness and therefore precision

The structure was specifically designed for the production of doors and windows.

The beam and the work table apply technology specifically designed to support significant forces.

MODULAR
SOLUTIONS

Multi-centres for WINLINE doors and windows are modular and can be integrated into multiple cells.
A competitive advantage that makes Biesse’s solutions beneficial for large companies with a focus on long-term investment.
Machining without direct supervision complemented with automatic loading and unloading systems,
expandable solutions that meet production types and volumes dictated by the market.

ELEVATED PRODUCTIVITY
WITH A MINIMAL FOOTPRINT

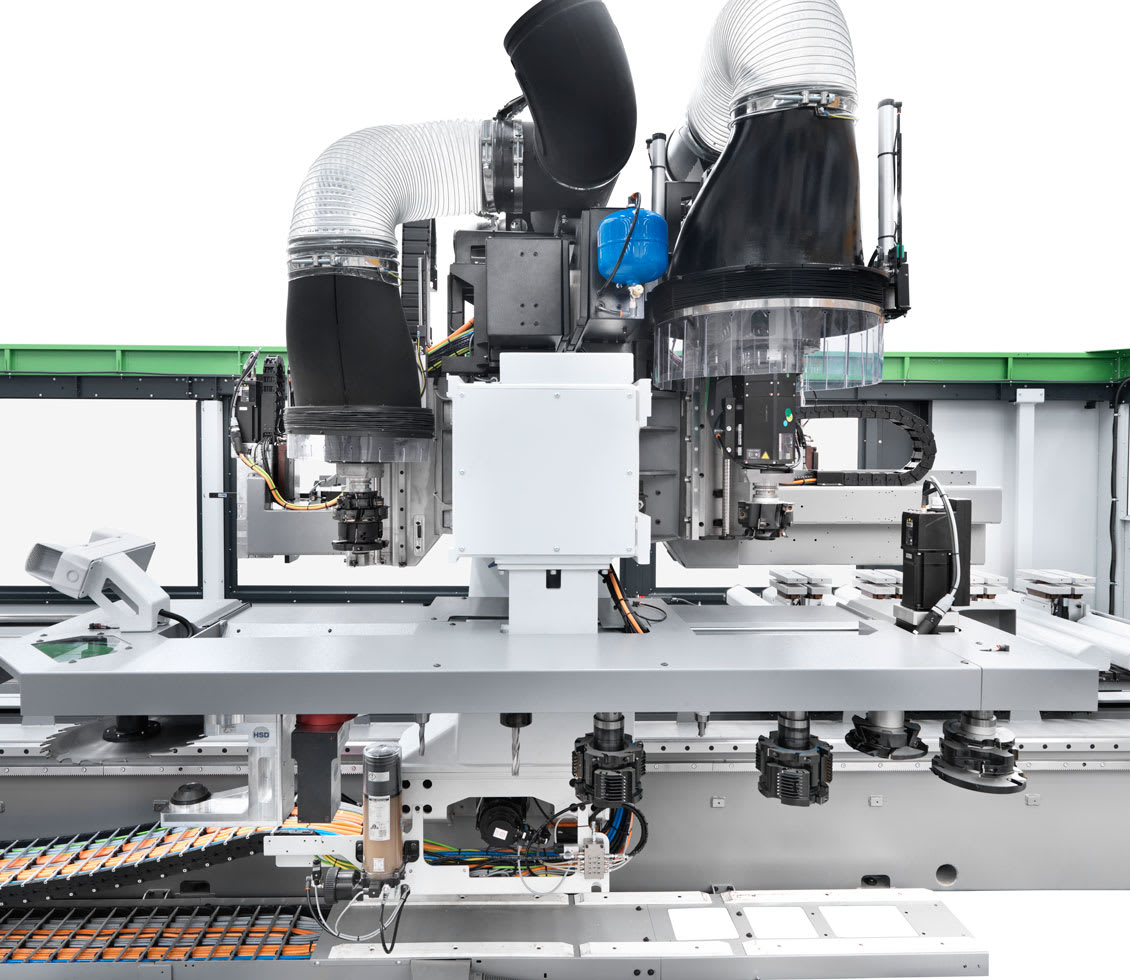

The double electrospindle allows for all changes to happen with no downtime, regardless of the working cycle.

The two spindles, placed on either side of the carriage take turns tooling, one changes tools while the other works.

MAKSIMALNA
JEDNOSTAVNOST
I PRECIZNOST

WinLine 16 je novi Biesse multifuncionalni centar za proizvodnju vrata i prozora,
dizajniran za zanatlije i mala preduzeća koja streme povećanju proizvodnje,
kao i za srednja i velika preduzeća koja žele da proizvedu male količine komada neobičnih veličina ili oblika.
Sistem proizvodi kako standardna tako i posebna vrata i prozore izuzetno jednostavno,
dok operator može da se posveti drugim zadacima; mašina zauzima jako malo prostora
i autonomno obavlja operacije utovara, istovara i pozicioniranja komada, uz izuzetnu preciznost.

WINLINE 16: Photo 2
+
WINLINE 16: Photo 3

Ovaj radni sto je naročito dizajniran za rad na prozorima i vratima. Jedan deo radnog stola je namenjen linearnoj obradi, a drugi obradi prozora i vrata po želji klijenta (lukovi, šuplja vrata, formatiranje).

+
WINLINE 16: Photo 4

Stege u svakom trenutku omogućuju optimalno povezivanje komponenti. Čak i najkraći deo za obradu uvek je osiguran dvema stegama.

PRECIZNO I POUZDANO

Novi multi-funkcionalni centar sa gantry strukturom sa duplim pogonom garantuje čvrstinu i stoga preciznost

Struktura je posebno dizajnirana za proizvodnju vrata i prozora.

Greda i radni sto koriste tehnologiju koja je posebno namenjena da izdrži veliku silu.

MODULARNA
REŠENJA

Multi-funkcionalni centri za WINLINE vrata i prozore su modularni
i mogu se integrisati sa mnogim drugim jedinicama.
Rešenja koja nudi Biesse koriste pre svega velikim preduzećima
koja su usmerena na dugoročne investicije.
Obrada bez direktnog nadzora zajedno sa automatskim utovarom i istovarom,
prilagodljiva rešenja koja zadovoljavaju sve vrste potreba koje tržište zahteva.

POVEĆANA PRODUKTIVNOST
NA MALOM PROSTORU

Duplo elektrovreteno dozvoljava da se sve promene dešavaju bez gubitka vremena, bez obzira na to šta se obrađuje.

Dva vretena, po jedno sa obe strane ležišta rade naizmenično: dok se na jednom menja alat, drugo radi.
