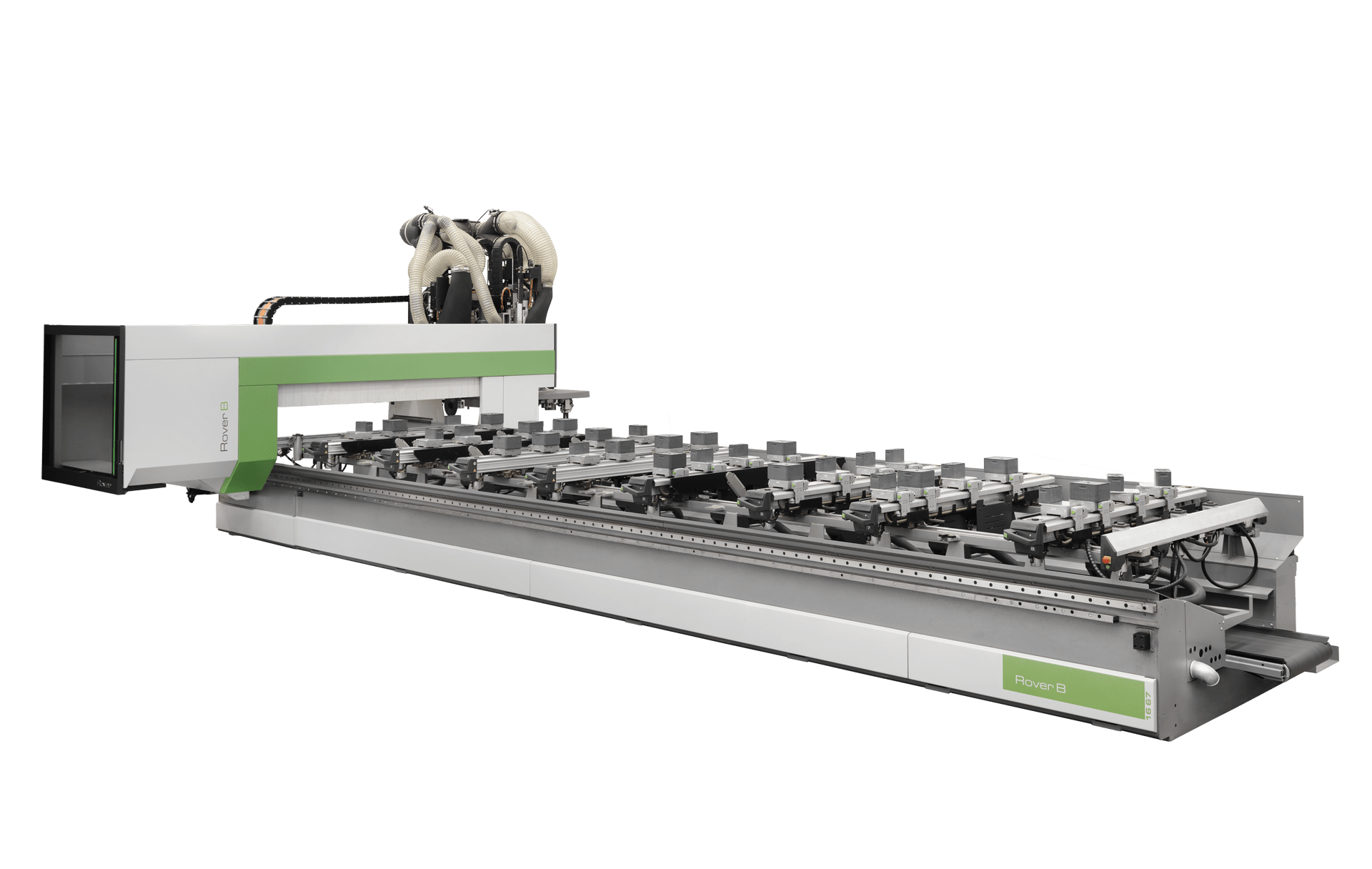

Rover B is the machining centre designed for both skilled craftsmen and largescale industry.
Configurable and high-performance, it ensures a quality finish and is reliable under all working conditions.
For an accessible investment, Rover B boasts technologies which are unique to the market.
2 Y-axes for maximum productivity in all machining operations. It is possible to machine two panels at the same time, and to change the tool while the machine is still running, ensuring that there is always a tool working on the product.
The 5-axis operating section, equipped with 13 kW HSD spindle and with 360° continuous rotation on the vertical and horizontal axes,
enables the machining of complex-shaped pieces ensuring quality, precision and absolute reliability over time.

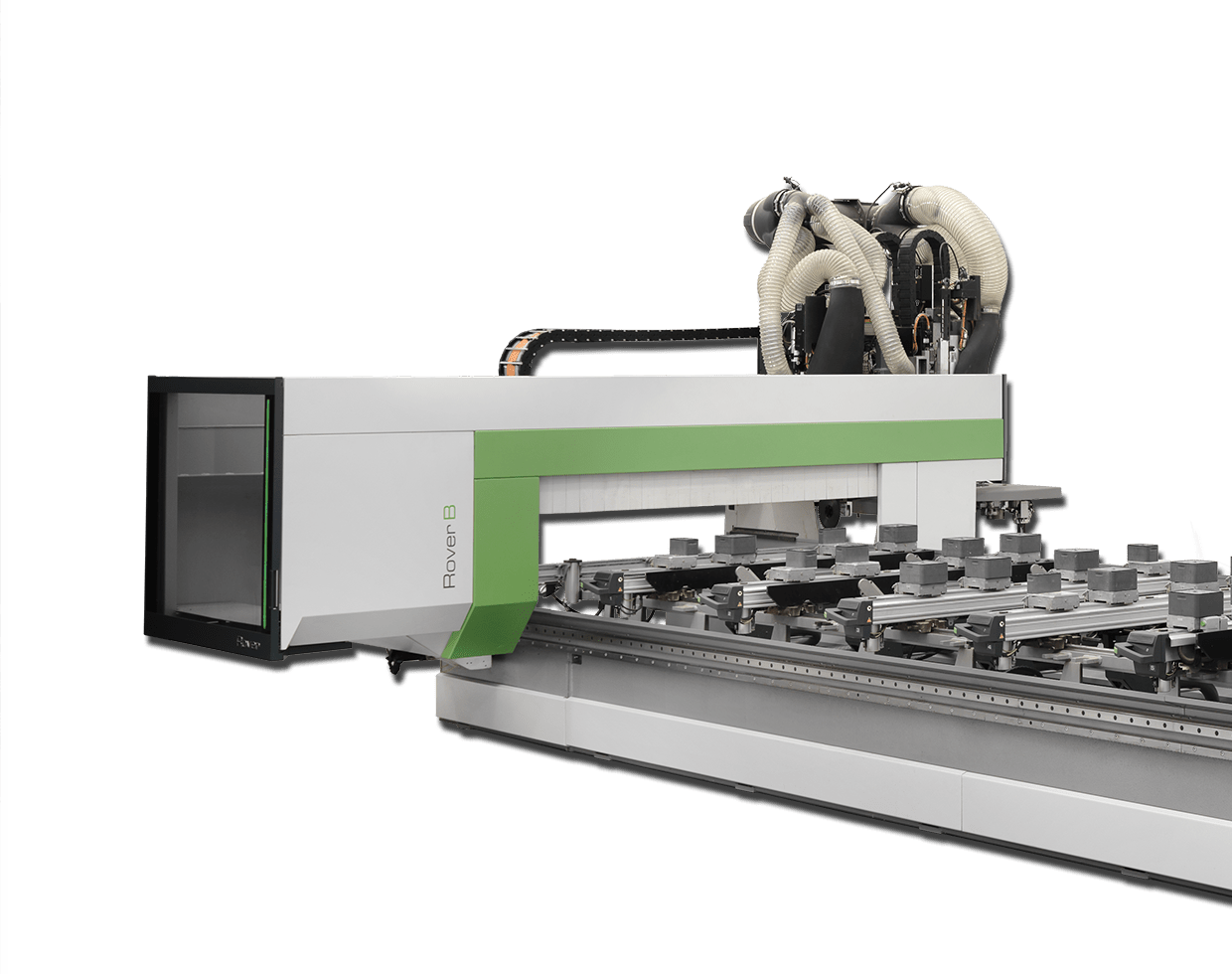

The Gantry structure has been designed to improve the precision and reliability of machining operations. Rigidity and absence of vibration ensures constant and reliable quality of the finished product.
Full workability with large panels
The rigid structure of the machine and the width of the Y axis allows users to machine panel widths of up to 2230 mm with all available tools. Choose from a comprehensive range of bed sizes to facilitate the machining of all panel sizes.

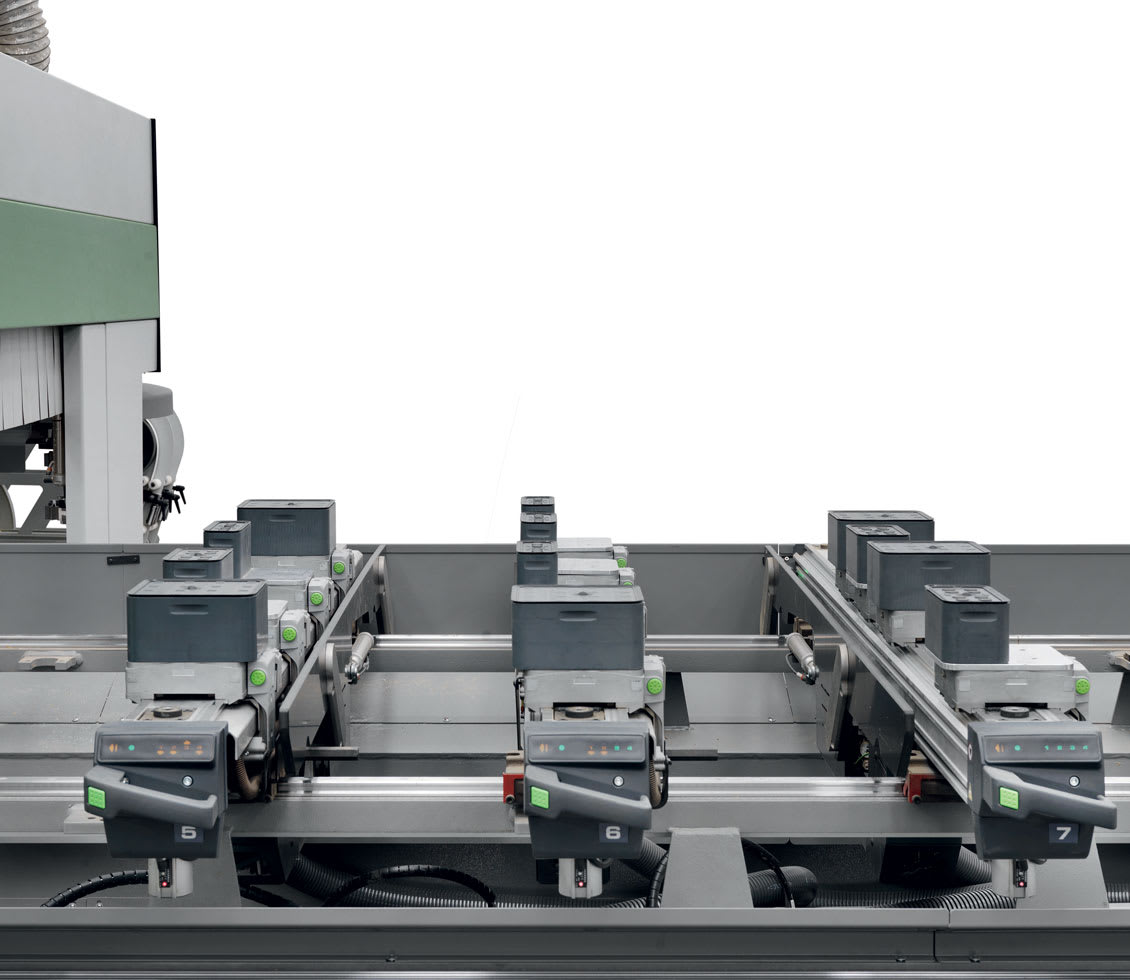

Reduced tool changeover time
The Biesse work table is guaranteed to hold the work piece securely and ensures quick and easy changeover of pod and clamps. The machine can house up to 91 aggregates and tools.

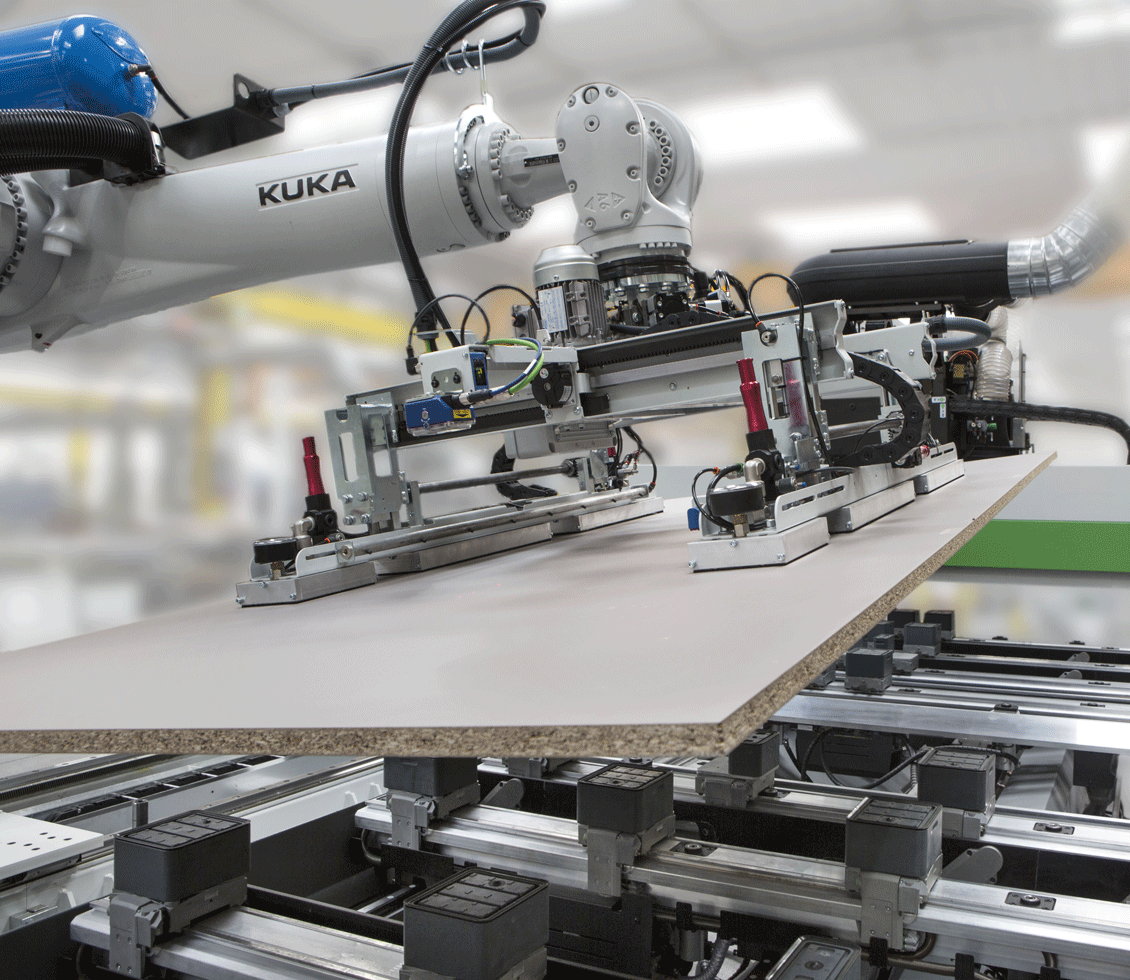

Integrated robot solutions.
Biesse offers its customers pragmatic solutions for factory automation.
ROS robotised solutions ensure a marked increase in production and total reliability of both the production process and the unloading operations, even in a wider context of industrial automation.
Reduced tool changeover time
The Biesse work table is guaranteed to hold the work piece securely and ensures quick and easy changeover of pod and clamps.
Set Up Assistance
The assisted set-up system, indicates to the operator where to position the panel, pods and rails to avoid potential collisions with the tool.
Electronic Positioning System
Allows for rapid automatic re-configuration of the entire work area.
Positions work tables and pods by means of separate motors, i.e. without engaging the operating section.
The positioning of the pod and rail is performed during machining, whilst the machine is working on the opposite area.
Loading and unloading solutions. Automated cell for machining a batch of panels or doors.
Synchro is a loading/unloading device that transforms the Rover machining centre into an automatic cell for producing a stack of panels autonomously without the need for an operator:
- it eliminates the risk of damage in the case of heavy panels that need to be handled by 2 operators
- it’s easy to use, because the machining centre program also contains the Synchro command instructions
- it has limited overall dimensions, and can be positioned to the left or right of the machining centre
- it comes with various configurations, depending on the size of the panels to be handled and the layout of the stacks.
A single platform to manage all machine processes.
Software for ROVER B
Designs, simulates and realizes.
3d bSolid allows, with a single platform, to perform all types of processing.
